Automotive body assembly places unusual demands on joining equipment. A production line may need to position welding guns repeatedly across complex body structures while maintaining consistent process conditions and keeping every station within its planned cycle. That combination makes robotic resistance welding less about simply adding a robot and more about coordinating an entire joining cell.
For automotive manufacturers and Tier suppliers, the engineering challenge is to make robot movement, fixtures, welding power, electrodes, and process controls operate as one production system.
Why Automotive Body Assembly Fits Robotic Resistance Welding
Resistance spot welding is widely used in automotive body construction, where overlapping sheet-metal components must be joined at numerous defined locations. Robots are commonly applied because the weld points are distributed throughout three-dimensional assemblies and require repeatable access and positioning. Research on automotive robotic spot welding identifies robot movement, welding-point sequencing, gripping, and interaction between multiple robots as important factors in cycle-time optimization.
The application is particularly suited to programmable equipment because the same vehicle architecture can require many repeated weld operations. A robot can execute programmed trajectories while the welding system manages the electrical and mechanical portions of each weld.
Such automation does not eliminate engineering variables. Part tolerances, fixture accuracy, electrode condition, welding parameters, and gun accessibility all remain part of the process. The robot provides repeatable motion, but the surrounding system determines whether that motion produces a stable weld.
What the Welding Cell Has to Coordinate
A typical automated resistance-welding cell is a coordinated assembly rather than a standalone robot. The robot positions the welding gun, the fixture establishes the workpiece location, and the welding equipment controls the electrical and mechanical sequence.
During resistance spot welding, electrodes apply pressure to the sheets while welding current passes through the joint. Heat is generated at the contact region and produces the weld.
That sequence creates several integration points. The gun must reach the intended location without collision, the workpiece must remain properly supported, and the welding system must deliver the programmed process at the correct point in the robot sequence.
Gun configuration can also influence robot selection. A heavier welding gun changes the payload requirement, while a long reach may be necessary to access recessed body locations. Consequently, robot selection should follow the actual gun, tooling, and part geometry rather than being treated as a separate automation purchase.
Keeping Hundreds of Weld Points Within the Production Cycle
Automotive productivity is strongly influenced by how efficiently the robot moves between weld points. Time is consumed not only by the electrical weld itself but also by robot travel, gun opening and closing, approach motions, repositioning, and interactions with fixtures.
A peer-reviewed study of an automotive robotic resistance spot-welding line examined robot paths, weld-point allocation, gripping, holds, and coordination between multiple robots. Its optimization work demonstrated that sequencing and robot movement can materially affect overall cycle time.
This means that reducing weld time alone may not produce the expected line improvement. If robots spend excessive time traveling between distant points, an electrically efficient welding schedule can still coexist with a slow station.
Offline simulation can therefore become useful during cell development. Engineers can examine reachability, collision risks, weld-point allocation, and movement sequences before physical commissioning. The objective is not simply to make the robot move faster, but to remove unnecessary motion while preserving access and process requirements.
Managing Weld Consistency Across the Vehicle Body
Repeatability is one reason automotive manufacturers use robotic welding, but repeatable robot motion does not guarantee identical weld conditions. The actual weld depends on electrode contact, material stack-up, force, current, time, and the condition of the welding equipment.
Electrode wear is one example. As production continues, the electrode working surface can change, affecting contact conditions and current distribution. Fixture wear or dimensional variation can similarly alter how sheets are presented to the welding gun.
A stable automotive cell therefore needs more than programmed coordinates. Maintenance procedures, electrode management, fixture verification, and welding-parameter control all contribute to process stability.
The role of the automation system is to make these conditions repeatable enough for production. If the mechanical and electrical parts of the cell are not coordinated, increasing robot accuracy alone cannot solve the underlying process variation.
Where Process Monitoring Becomes Part of Automation
Monitoring adds another layer of visibility because the weld itself occurs too quickly for conventional visual observation to explain every process change. Measurement systems can capture welding variables and provide information about whether the process remains within an established operating condition.
This becomes particularly relevant on high-volume automotive lines. A small change repeated across many weld points can create substantial downstream consequences, while an abnormal measurement can provide an earlier indication that equipment or process conditions require investigation.
Sunke‘s automotive application portfolio includes robotic resistance-welding solutions, reflecting the need to combine welding equipment with automated production requirements.
Monitoring should nevertheless be treated as part of process engineering rather than a substitute for qualification. Production teams still need defined welding conditions and appropriate validation methods. The monitoring system adds visibility into whether the equipment continues to operate around those conditions.
Selecting the Welding System Around the Production Cell
Automotive manufacturers evaluating resistance welding applications should begin with the physical and production requirements of the cell. Weld-point quantity, part geometry, access direction, robot payload, gun type, fixture arrangement, cycle time, and required process control all influence the equipment architecture.
A robotic resistance welding system should consequently be evaluated as an integrated package. Robot reach alone does not determine suitability, just as welding-current capacity alone does not determine production performance.

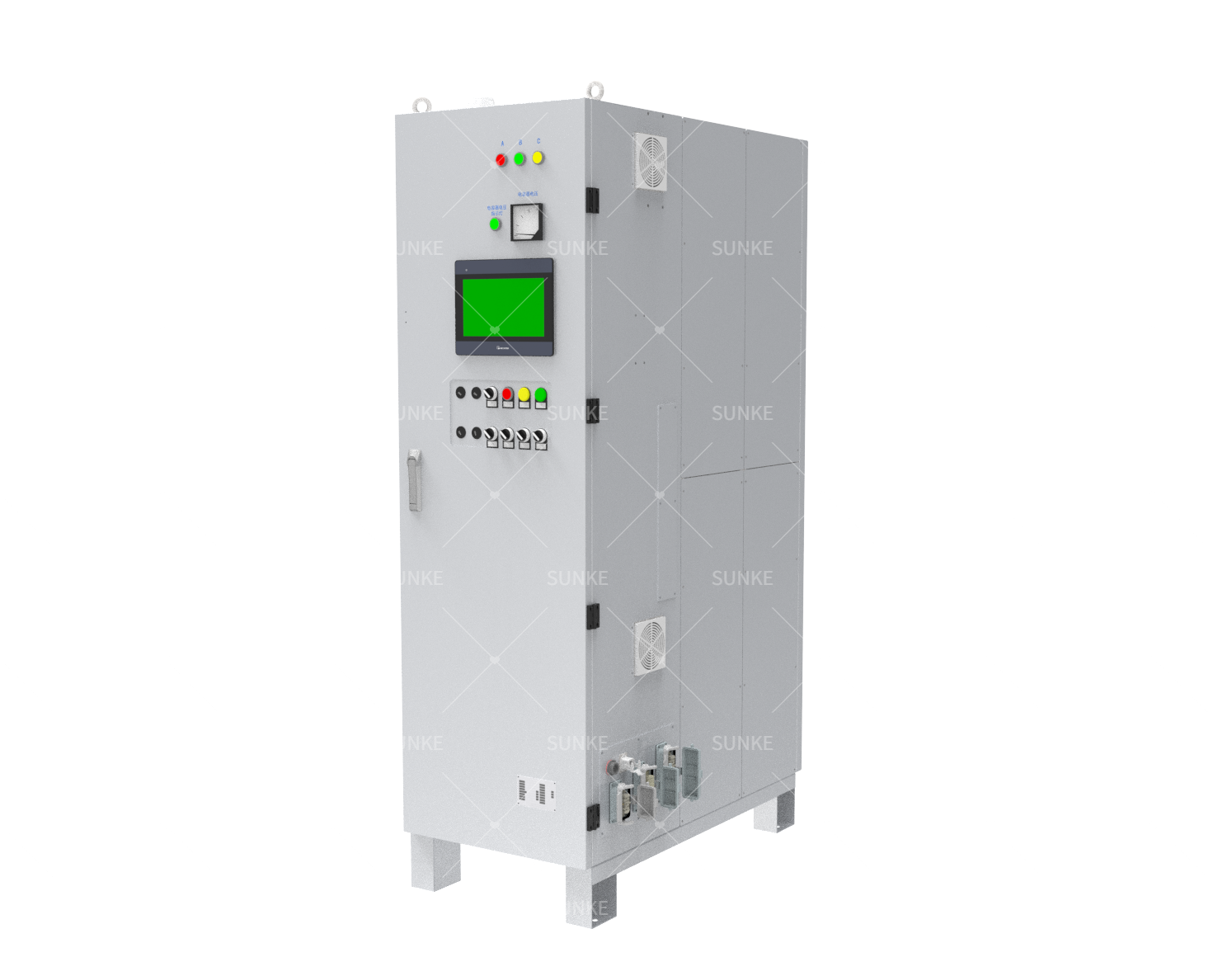

Sunke develops resistance-welding equipment for automotive and other industrial applications, making the broader integration perspective relevant when evaluating potential suppliers. The important question is how well the selected equipment fits the intended production workflow, including power delivery, welding control, tooling, monitoring, and automation interfaces.
Automotive robotic welding succeeds when the cell is engineered around the complete production sequence. The robot must reach the weld, the fixture must hold the part correctly, the gun must establish the required contact, and the welding system must execute the process at the intended point in the cycle.
That is why the most effective implementation begins with the vehicle assembly requirements rather than with the robot itself. Once weld locations, access, cycle time, process conditions, and production controls are defined, the robotic welding architecture can be designed around those constraints instead of forcing the manufacturing process to adapt to an already-selected machine.
