Comprehending the core mechanics of industrial packaging is key to appreciating its efficiency. A cartonator packing machine is a specialized piece of equipment designed for the automatic erection, loading, and sealing of cartons. For businesses seeking reliable cartoning machine manufacturers, understanding this process is crucial. This article examines the operational stages of a specific model to illustrate the precision involved in this technology. The process, as demonstrated by the LFBI-10 model from Pharmapack, showcases their approach to automated packaging solutions.
The Initial Stages: Product and Carton Preparation
The operation begins at the infeed conveyor. Here, Product A is positioned, either manually or automatically, into the conveyor’s buckets. A sensor on this conveyor checks for the product’s presence. This sensor is a critical component, as its signal authorizes the transfer of a flat carton from the magazine. Simultaneously, a single carton is squared and positioned into a marking station. At this stage, a code is mechanically embossed onto one of the carton flaps. Following this, the now-marked carton moves to the filling station, ready for the next phase.
The Assembly and Final Sealing Process
At the filling station, two actions occur in coordination. A leaflet inserter places a leaflet into the introduction zone. As the product reaches the end of its bucket on the infeed conveyor, it meets the leaflet. A pusher then seamlessly inserts both the product and the leaflet into the waiting, opened carton. The fully loaded carton then advances onto a toothed belt transporter. A series of specialized folders then engage with the carton, meticulously folding both the top and bottom flaps to complete the closure. This ensures a secure and consistent final package.
Ensuring Output Quality

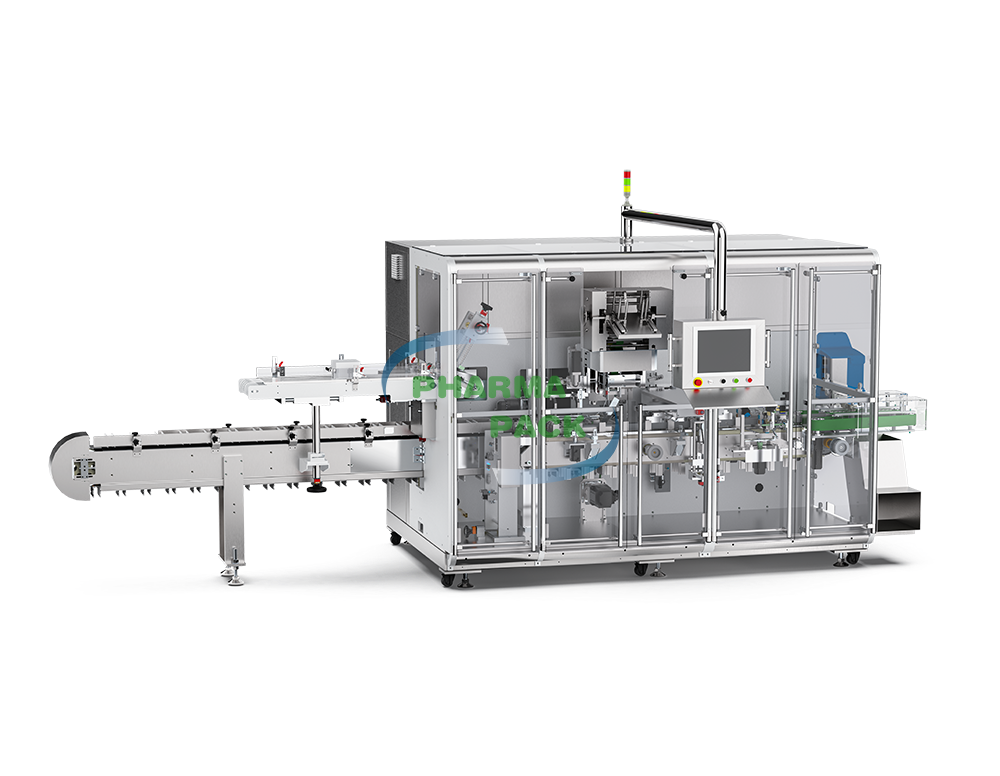

The final step in the sequence is quality assurance. At the machine’s exit, an ejection station is positioned specifically for incomplete products. This function guarantees that only properly filled and sealed cartons proceed down the line, maintaining high standards. The design of the LFBI-10 Intermittent Horizontal Cartoner reflects the engineering priorities of Pharmapack as one of the leading cartoning machine manufacturers. Their cartonator packing machine technology integrates precise mechanical actions with automated checks, resulting in a robust and dependable packaging system for various industries.
